Description

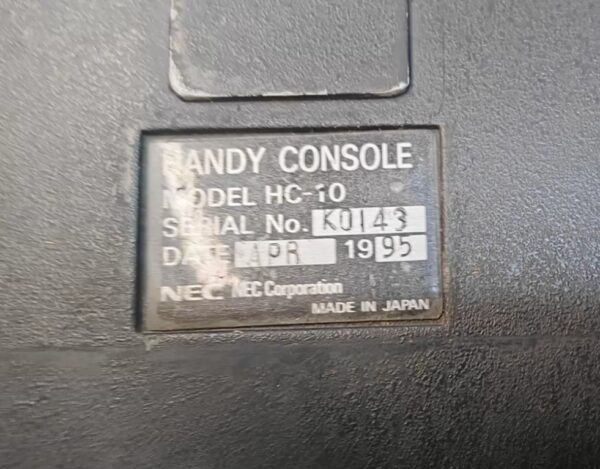

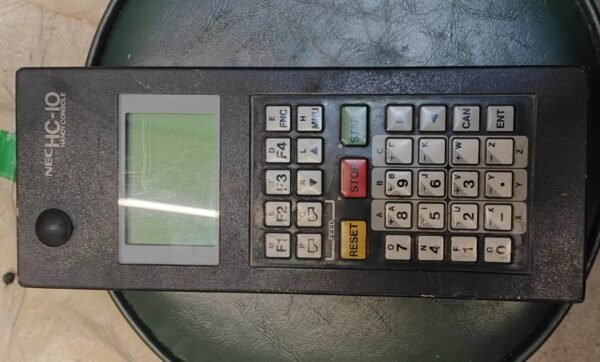

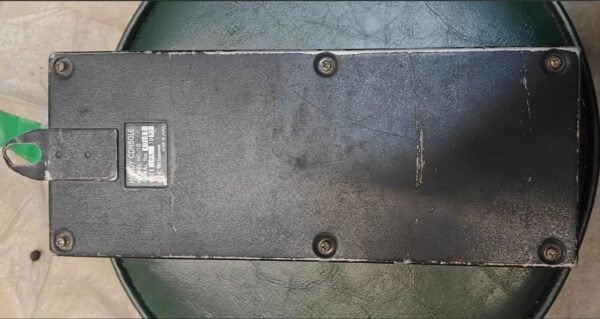

NEC HC‑10 Hand Controller (Handy Console / Teach Pendant)

Core Overview

Key Functions

• Robot Teaching: Record and edit robot motion paths (point‑to‑point, linear, circular)
• Jog Control: Manual movement of robot axes for positioning
• Parameter Setting: Adjust robot speed, acceleration, I/O, and system parameters
• Status Monitoring: Display robot position, alarms, and operational state
• Program Management: Load, save, and run robot programs
• Emergency Stop: Integrated E‑stop for safety

Physical & Interface

• Display: LCD screen (typically monochrome or low‑resolution color)
• Input: Keypad with function keys, axis controls, and mode selectors
• Connection: Dedicated cable with proprietary connector to robot controller
• Weight: ~10 lbs (4.5 kg) (with cable)
• Build: Rugged industrial handheld design

Compatibility

• NEC Robot Controllers: Compatible with older NEC robot systems (e.g., NEC SC, RC series controllers)
• Applications: Used in manufacturing, assembly, and material handling

Replacement & Availability

• No New Units: HC‑10 is no longer manufactured
• Market: Only used/refurbished units available from industrial parts suppliers
• Modern Alternatives: Current NEC robot teach pendants (e.g., NEC FP series) or third‑party compatible handhelds
