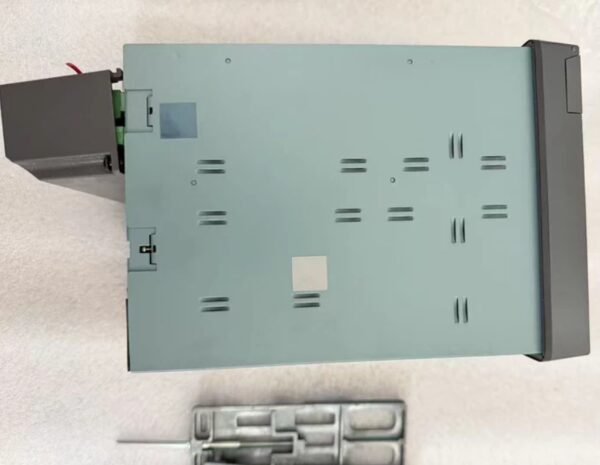

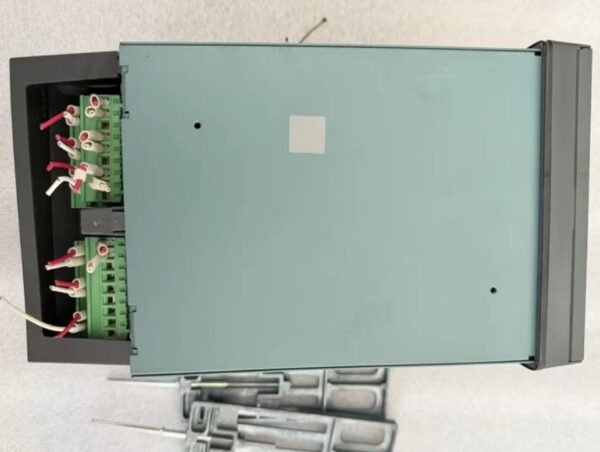

YOKOGAWA Japanese Yokogawa paperless recorder FX112-4-2[USED]

Description

I. Complete Model Analysis (FX112-4-2)
FX112: FX100 series, 12-channel paperless recorder
-4: Built-in 400MB flash memory (some data marked as 1GB, refer to the actual product)
-2: Supports external CF card storage (maximum 2GB), no Ethernet/USB basic version
II. Core Technical Parameters
1. Channels and Sampling
Input type: Universal (TC thermocouple, RTD thermoresistor, DCV, mA, DI switch quantity)
Number of channels: 12 channels for synchronous acquisition
Sampling period: 1s/2s (fixed, no high-speed mode)
Accuracy: DCV ±0.05%; TC/RTD ±0.15%
Temperature measurement range: -200℃～1300℃ (depending on the sensor)
2. Display and Storage

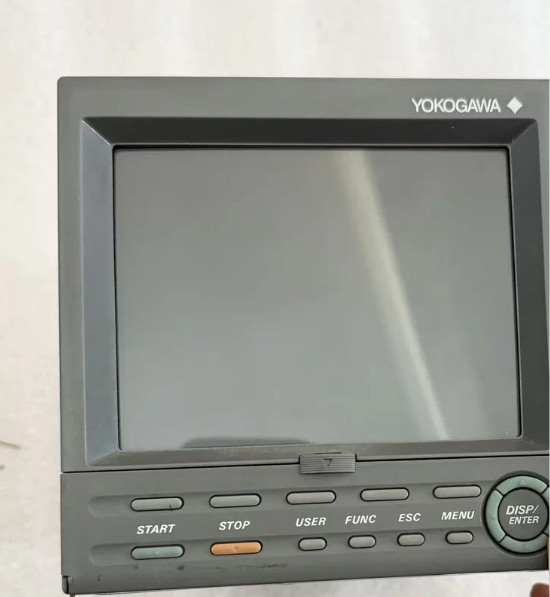

Screen: 5.7-inch monochrome LCD (320×240), supports curve / digital / bar chart / alarm display
Storage: Built-in 400MB + CF card (maximum 2GB); data format: binary / CSV
Interface: Only RS-232C, no Ethernet / USB/RS-485 (basic version)
3. Physical and Environmental
Size: 200×180×95mm (panel embedded)
Weight: Approximately 0.5kg
Protection: Front panel IP65 (dust and water proof)
Power supply: 100–240V AC (standard)
Operating temperature: 0～50℃
