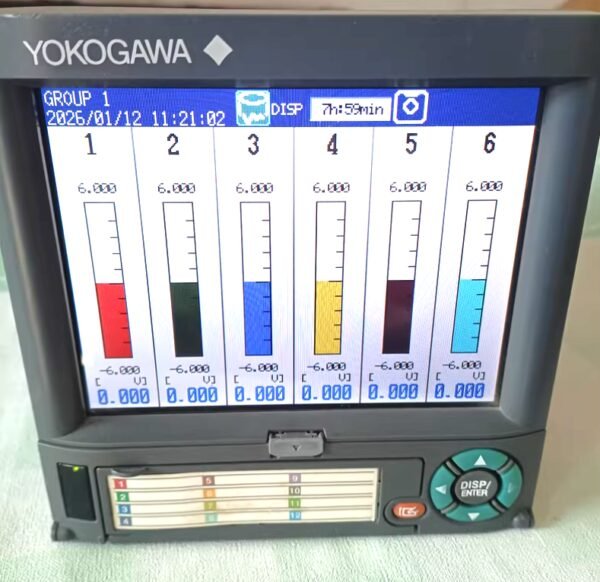

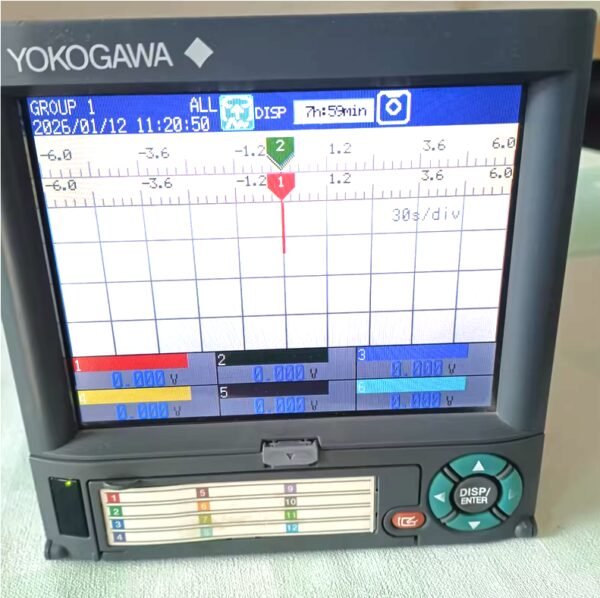

Hewa paperless recorder DX1012-3-4-3, data collector with 12 channels[USED]

Description

I. Model Meaning (DX1012-3-4-3)
DX1012: 12 channels, standard scan time 1 second, fast mode 125ms
-3: Built-in storage 400MB
-4: External storage CF card (including media)
-3: English display (some versions are language / installation method)
II. Core Parameters (12-channel data acquisition)
Channels and Sampling: 12 universal inputs (thermocouple, RTD, voltage, current, pulse); standard 1 second / channel, fast mode 125ms; expandable to 48 channels
Display: 5.5-inch color TFT LCD (320×240)
Storage: Built-in 400MB + CF card expansion; supports batch recording, time-based retrieval
Interface: Standard Ethernet (Modbus/TCP, FTP, Web); optional RS-232/485, PROFIBUS-DP
Protection: Front panel IP65/NEMA4, suitable for industrial sites
Power Supply: 100–240V AC (or 24V DC optional)
Installation: Panel embedded (vertical / ≤ 30° inclination
