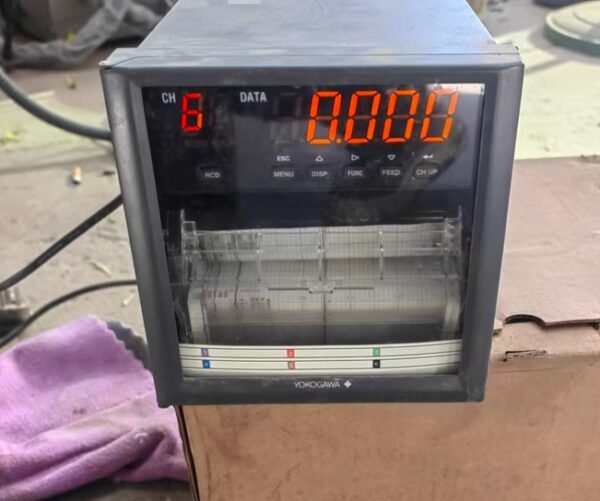

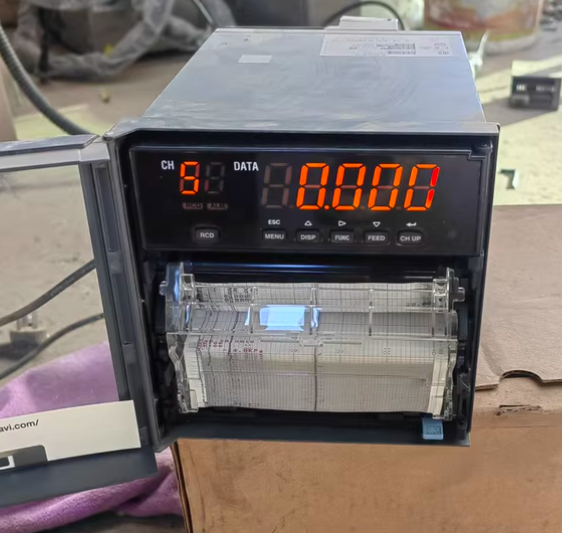

YOKOGAWA’s paper recorder SR10006-3[USED]

Description

1. Input and Sampling
Channels: 6 universal synchronous input channels
Thermocouples (TC): R/S/B/K/E/J/T/N/W/L/U/WRe, etc.
Thermistors (RTD): Pt100
Direct Current Voltage (DCV): 20mV – 50V, 1 – 5V
Direct Current Current (DCA): External shunt resistor
Switching Quantity (DI): TTL / contact input
Sampling / Sampling Point Cycle:
1s/6 points (AD integration 20ms/16.7ms, 50/60Hz)
2.5s/6 points (AD integration 100ms)
Accuracy: ±0.1% (voltage); ±0.2% (temperature)
2. Display and Recording
Display: 5.7-inch large screen LED (10×18mm characters), 6-channel real-time digital display
Recording: 100mm wide paper, 6-color dot plot, curve / digital / alarm printing
Toner: Boxed toner, easy to replace
Paper Feed Speed: Adjustable in multiple gears (10mm/h – 600mm/h)
3. Physical and Power Supply
Panel Size: 144×144mm (embedded)
Protection: Front panel IP54
Power Supply: 100–240V AC (50/60Hz); optional 24V DC/AC
Weight: Approximately 3.0kg
