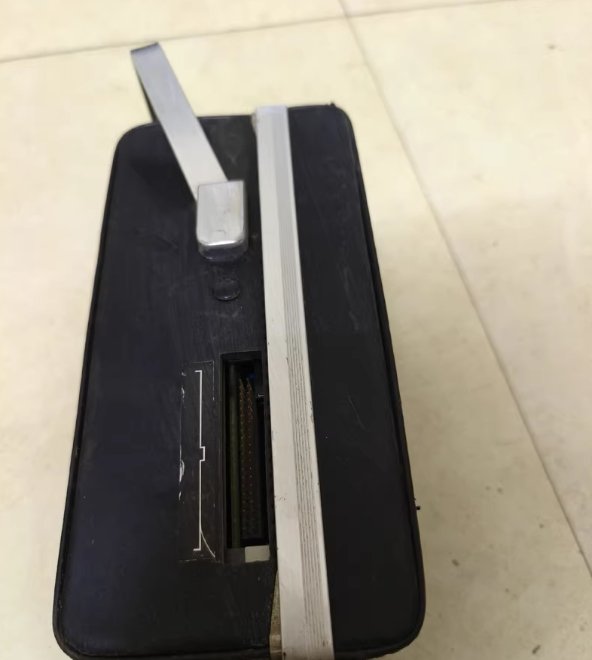

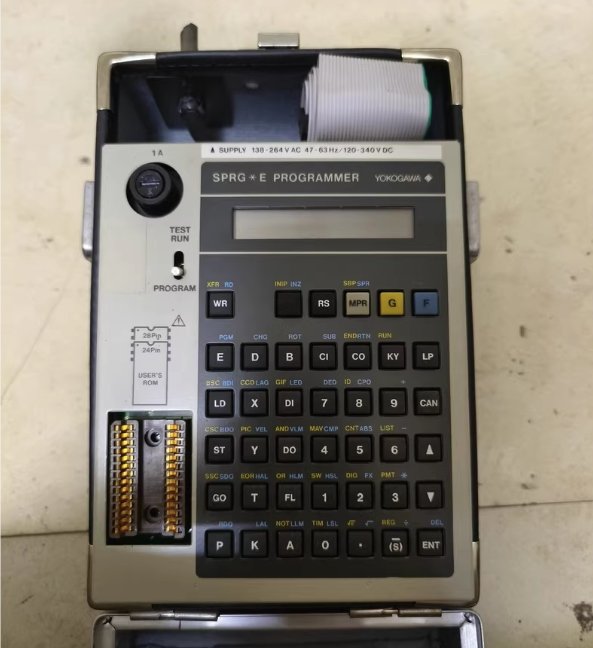

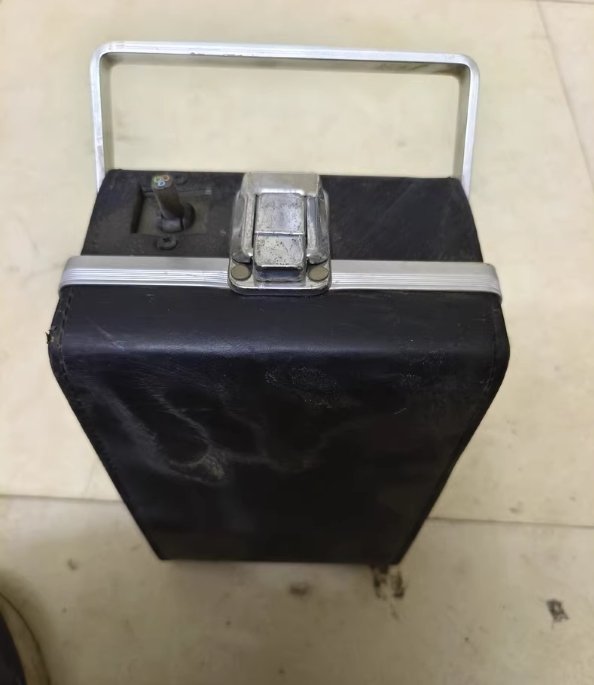

Yokogawa SPRG*E Programmer

Core Identity

• Full Model: SPRG‑E (Style E) Programmer
• Status: Discontinued (replaced by YSS1000 software)Yokogawa
• Purpose: Program, configure, and monitor YEW Series 80 rack instruments
• Interface: Dedicated port connection to target instruments
• Display: 16‑digit LCD
• Keypad: 41 multifunction keys

Key Functions

1. Program Editing: Write user logic for SLPC/SPLR into UV EPROM
2. Parameter Setting: Adjust span, alarm, K‑factor, compensation coefficients
3. Monitoring: Real‑time display of PV, output, status, alarms
4. Simulation: Test logic without field signals
5. EPROM Programming: Burn programs to user EPROM (AI123LQ)
6. Diagnostics: View FAIL/ALM causes

Compatibility

• SLPC: Programmable indicating controller
• SPCM: Pulse computing unit
• SPLR: Programmable computing unit
• Other YEW Series 80: SCMS, SLBC, SLCC, etc.

Physical & Power

• Mounting: Rack‑mount (48 mm width) or handheld
• Power: Supplied by target instrument (no external power needed)
• Weight: ~0.5 kg
• Operating Temp: 0–50 °C
