Description

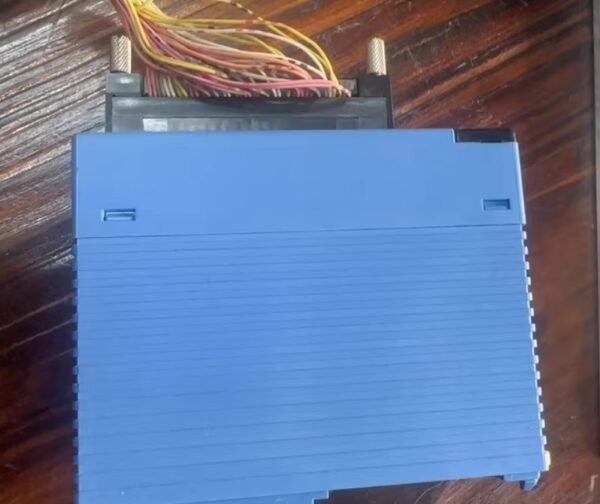

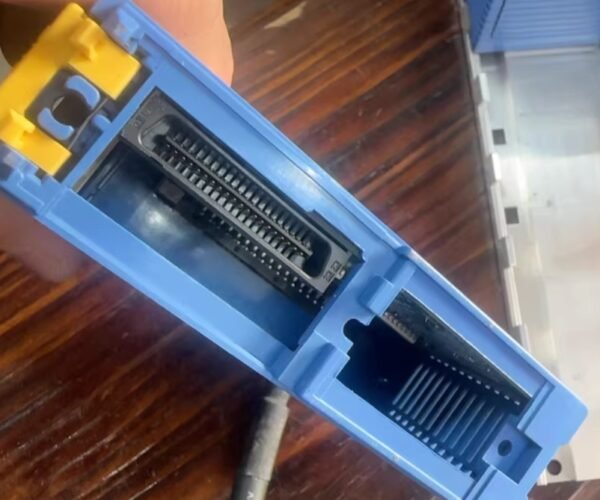

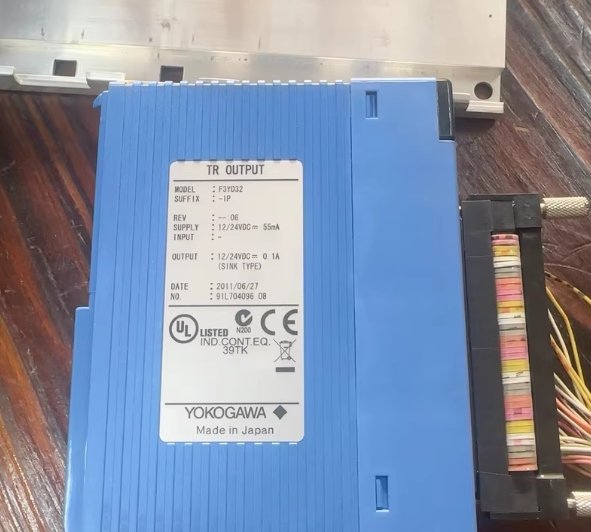

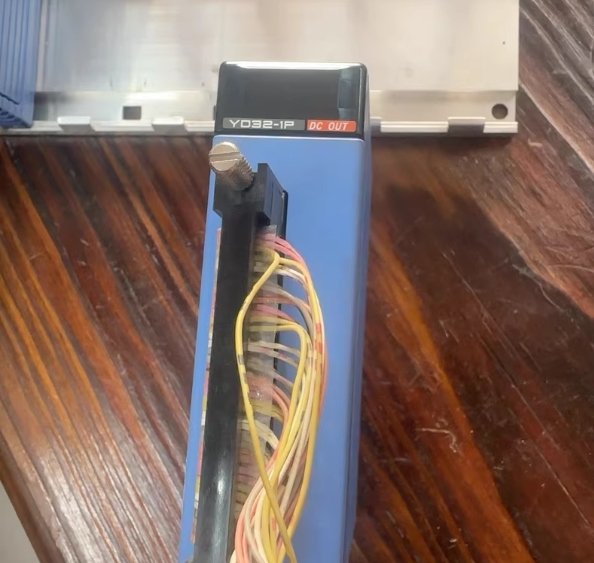

Yokogawa F3YD32‑1P Digital Output Module

Core Specifications

Basic Identity

• Model: F3YD32‑1P
• Series: FA‑M3 / e‑RT3
• Type: Transistor output (sink / NPN)
• Points: 32
• Common: 8 points / common (4 commons total)

Electrical

• Rated load voltage: 12–24 V DC (operating: 10.2–26.4 V DC)
• Max load current: 0.1 A / point; 0.5 A / common
• Response time: ≤ 1 ms (OFF→ON, ON→OFF)
• ON voltage drop: ≤ 0.5 V DC
• Leakage current (OFF): ≤ 0.1 mA
• Isolation: Photocoupler; 1500 V AC for 1 min
• Protection: Built‑in output short‑circuit protection

Power

• Internal (5 V DC): 160 mA
• External (12–24 V DC): 95 mA

Physical

• Dimensions: 28.9 (W) × 100 (H) × 83.2 (D) mm
• Weight: ~150 g
• Mounting: Single slot on FA‑M3 base
• Operating temp: −10°C to +55°C

Model Code Meaning

• F3: FA‑M3 / e‑RT3 series
• Y: Output module
• D: Transistor output
• 32: 32 points
• 1: Standard response
• P: Sink‑type (NPN) with short‑circuit protection

Compatibility

• Bases: F3BU05‑0D, F3BU09‑0N, F3BU13‑0N, F3BU16‑0N
• CPUs: F3SP05‑0P, F3SP21‑0N, F3SP28‑3N, F3SP38‑6N, F3SP53‑4H, F3SP58‑6H
• Applications: Solenoids, relays, indicators, small actuators

Key Features

• 32‑point density: High I/O density in single slot
• Photocoupler isolation: Protects PLC from field noise
• Short‑circuit protection: Prevents damage to module/load
• Fast response: 1 ms for high‑speed switching
• Sink‑type: Matches common 24 V DC industrial loads
