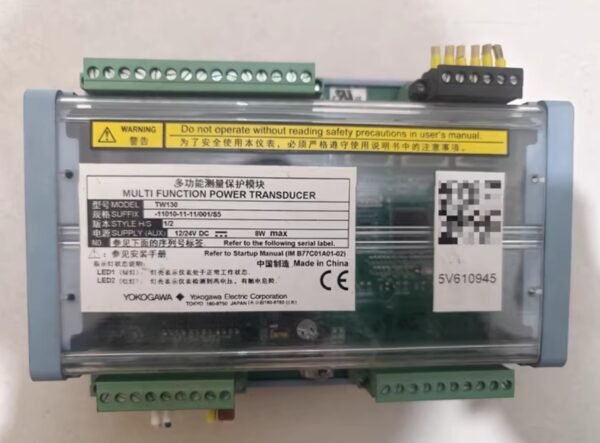

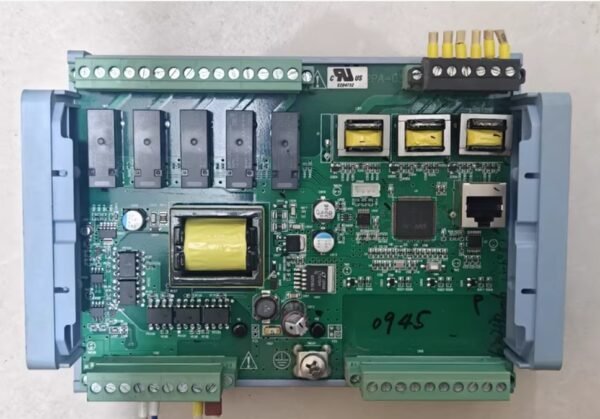

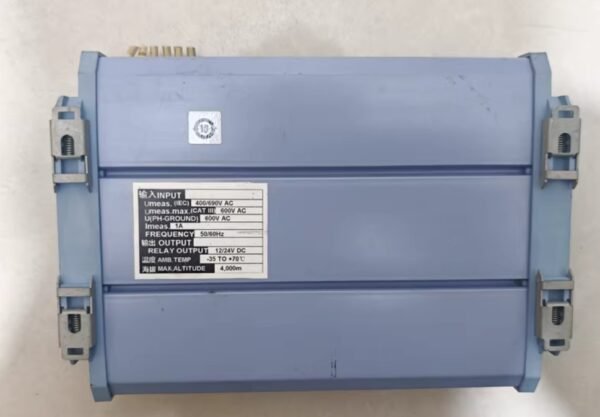

Yokogawa TW130 Multi-function Measurement Protection Module [USED]
Yokogawa TW130‑11010‑11‑11/001/S5
Multi‑function Measurement & Protection Module (Official Spec)
Basic Identity
- Full Model: TW130‑11010‑11‑11/001/S5
- Series: TW130 Multi‑function Measurement & Protection Module
- Application: Power system monitoring & protection (generator/motor/grid)
- Type: DIN‑rail mount, multi‑function power measurement & protection relay
Model Code Breakdown (TW130‑11010‑11‑11/001/S5)
| Segment | Value | Meaning |
|---|---|---|
| Base | TW130 | Multi‑function measurement & protection module |
| 1 | 1 | Phase & wiring: 3‑phase 3‑wire / 4‑wire |
| 2 | 1 | Rated input: 690V / 1A AC |
| 3 | 0 | Pulse output: None |
| 4 | 1 | Communication: RS‑485 (Modbus RTU) |
| 5 | 0 | Display: No local display |
| 6 | 1 | Measurement functions: Voltage, current, frequency, power, energy, phase angle |
| 7 | 1 | Protection functions: Over/under freq, over/under voltage, unbalance, overload, phase drift, rate‑of‑change, fault ride‑through |
| 8 | 1 | Mounting: DIN rail |
| /001 | 001 | Hardware revision |
| /S5 | S5 | Firmware version |
Core Functions
1. Measurement Functions
- Voltage: 3‑phase (3W/4W), 1‑phase (2W/3W), true RMS
- Current: 3‑phase, true RMS
- Power: Active (kW), reactive (kvar), apparent (kVA), power factor (PF)
- Energy: kWh, kvarh (cumulative)
- Frequency: 45–65 Hz
- Phase angle, THD (optional), demand calculation
2. Protection Functions
- Over/under voltage (3‑phase)
- Over/under frequency
- Voltage/current unbalance
- Overload / underload
- Phase sequence / reverse phase
- Phase drift
- Rate‑of‑change of frequency (df/dt)
- Configurable time‑delay fault ride‑through
- 4–8 programmable relay outputs (alarm/trip)
3. Communication
- RS‑485: Modbus RTU (default)
- Protocol: Modbus RTU (baud rate: 1200–19200 bps)
- Data: All measured values, status, alarms, setpoints
Key Specifications
Input
- Voltage: 0–690 V AC (nominal)
- Current: 0–1 A AC (nominal; external CT required for higher currents)
- Frequency: 45–65 Hz
- Accuracy: ±0.2% (voltage/current), ±0.5% (power/energy)
Output
- Relay outputs: 4–8 NO/NC contacts (250V AC / 30V DC, 5A)
- Analog output: Optional 4–20 mA (per phase/parameter)
- Pulse output: None (per your model code)
Power Supply
- Auxiliary: 85–264 V AC / 100–300 V DC (wide range)
- Power consumption: < 10 VA
Physical & Environmental
- Mounting: 35 mm DIN rail
- Dimensions: W×H×D = 45 × 90 × 110 mm
- Operating temp: −10°C to +55°C
- Humidity: 5–95% RH (non‑condensing)
- Isolation: 2 kV AC (input/output/power)
- Certifications: CE, IEC 61010‑1, UL (optional)
Typical Applications
- Generator protection & monitoring
- Motor control centers (MCC)
- Substation & distribution feeders
- UPS & backup power systems
- Industrial power quality monitoring
- Replacement for legacy protection relays
![Yokogawa TW130 Multi-function Measurement Protection Module [USED]](https://mlidoo.com/wp-content/uploads/2026/02/167-300x300.jpg)
Yokogawa TW130 Multi-function Measurement Protection Module [USED]
Complete Collection of New + USED Industrial Products — Automation & Instrumentation | From Field to Factory Floor
Our Services: ✅ Free Global Shipping ✅ 30-Day Returns & Exchanges ✅ Physical Product Photography ✅ Most Favorable Prices
Who We Stock: Our inventory spans the full spectrum of automation infrastructure — from field instrumentation to high-level control systems — sourced from the industry’s leading manufacturers:
🛠️ Process & Discrete Automation: Emerson · Honeywell · Siemens · GE · ABB · Schneider Electric · Rockwell Automation · Mitsubishi Electric · Yokogawa Electric · Fuji Electric
🤖 Robotics & Motion Control: FANUC · Yaskawa (Motoman) · Omron · Keyence · Beckhoff · Lenze · Nidec
⚙️ Fluid Control & Pneumatics: Parker Hannifin · Eaton · Festo · SMC
🔌 Connectivity & Sensing: TE Connectivity · SICK · ifm electronic · TURCK · Pilz
🏭 Industrial Infrastructure & Power: Rittal · Danaher · and more
Product Scope: Field instrumentation → Control systems → Drives & motion → Pneumatics & fluid control → Sensors & connectivity → Power & enclosure infrastructure
📞 Contact Us — WhatsApp: +86 15502977793 · For inquiries, pricing, or availability, reach out anytime.
Description
Yokogawa TW130 — programmable logic controller module for industrial automation. This unit is offered as a tested used instrument: it has been inspected, cleaned and functionally checked before listing, and the photos show the actual item you will receive.
Overview
The Yokogawa TW130 is a programmable logic controller module. It is widely used for machine control, production lines, retrofits, test benches, and is a practical choice when you need proven industrial hardware quickly, without the lead time and cost of a new unit. Where a nameplate, calibration label or firmware revision is visible, it is shown in the photos.
Key Features
- Deterministic scan cycle with fast I/O response
- Compatible with the original programming environment
- DIN-rail or rack mounting as per series
- Diagnostic LEDs for quick fault isolation
Specifications
| Item Type | PLC & Controller |
| Brand | Yokogawa |
| Model / Part No. | TW130 |
| Condition | Used – tested |
| Quantity | 1 unit |
| Listed Price | USD 450 |
Specifications are taken from the manufacturer’s datasheet for this model family. Please verify the exact model number in the title and photos before ordering.
Condition & Testing
Cosmetic condition: good used condition with normal signs of workshop use — see the photos for the exact unit. Function: powered on and checked for the basic functions of this model class. What is included: the unit and the accessories visible in the photos; anything not shown is not included (no charger, cable or manual unless pictured).
Shipping & Handling
- Dispatched within 1–2 business days after cleared payment.
- Packed with anti-static protection and shock-absorbing padding for international transport.
- Tracking number uploaded to your order as soon as the parcel is handed to the carrier.
- Import duties or taxes, where applicable, are the buyer’s responsibility.
Warranty & Returns
30-day DOA (dead on arrival) cover: if the unit does not power up on receipt, contact us with photos or a short video and we will arrange a replacement or refund. Returns accepted within 30 days for items that arrive not as described. Please check compatibility with your system before ordering — model numbers are stated in the title.
Why Buy From Us
- Industrial surplus specialists: every listing is a real, photographed unit.
- Careful packing and fast dispatch from our own stock.
- Technical questions answered before and after the sale.
- Combined shipping available — ask us for a quote on multiple items.
Buying a used instrument? Send us your machine model and we will confirm whether this unit is the correct fit.
