Yokogawa paper recorder, model SR10001-2[USED]

Description

I. Complete Model Analysis
SR10001: SR10000 series, 1 pen-type continuous recording (non-dotted)
-2: Language / Unit / Time Zone Configuration (English interface, ℉ temperature unit, supports Daylight Saving Time DST)
II. Core Technical Parameters
1. Input and Recording
Channel: 1 fully isolated universal input
Thermocouple: K/E/J/T/S/R/B/N/W/L/U
Thermoresistor: Pt100, Cu50/Cu10 (optional / N1)
DC Voltage: 20mV/60mV/200mV/2V/6V/20V/50V
DC Current: 4–20mA (requires an external 250Ω resistor)

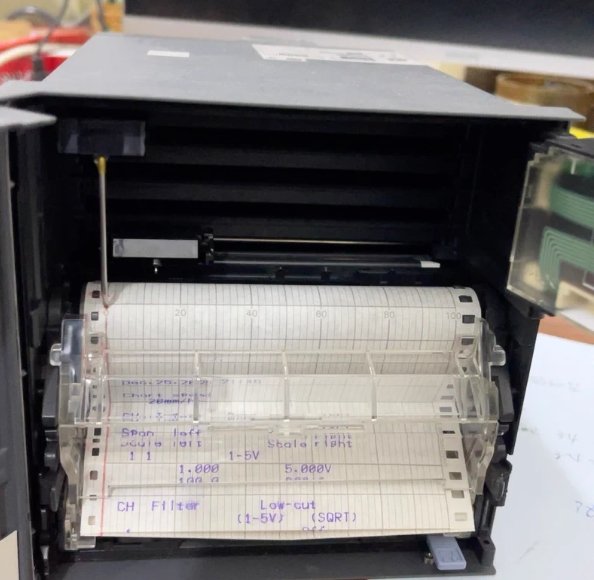

Recording Mode: Single pen continuous curve, fast pen response
Recording Paper: Width 100mm, Z-folded / Roll type, length 16m (Model: B9565AW)
Paper Travel Speed: 10–990 mm/h (adjustable)

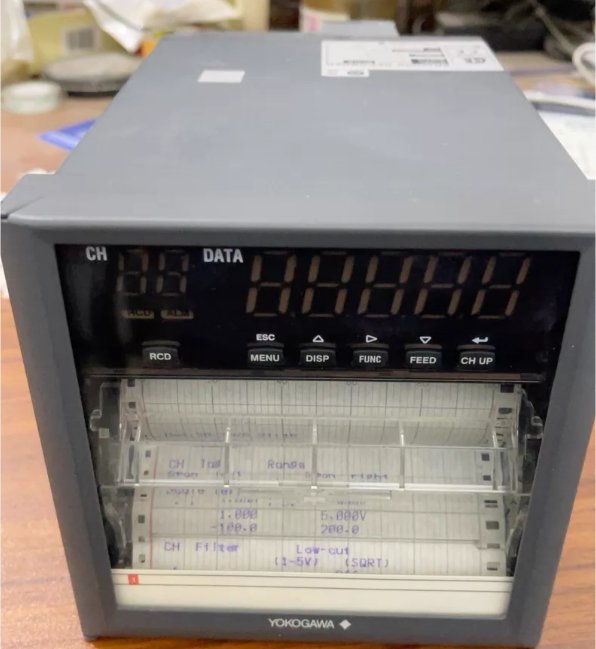

Display: 7-segment LED digital display, showing measured values / channels / alarms / time
2. Physical and Installation
Panel Size: 144×144 mm (standard industrial mounting holes)
Depth: 220 mm (compact chassis)
Installation: Panel embedded, can be densely installed, allows inclination ≤ 30°
Protection: Front panel IP54 (dust and drip-proof)
Weight: Approximately 2.5 kg
3. Power Supply and Alarm

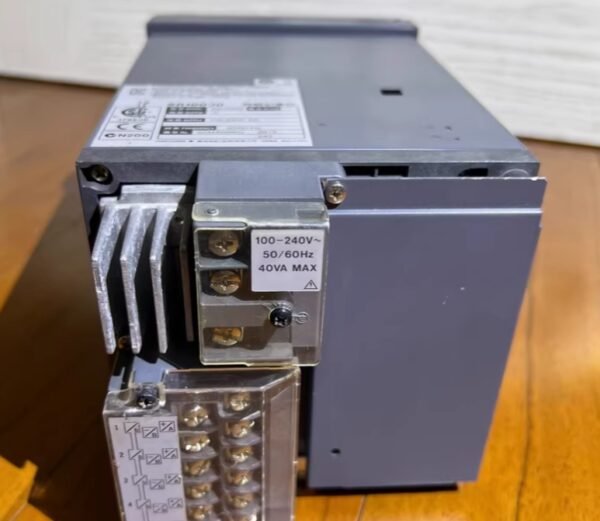

Power Supply: 90–132V AC / 180–264V AC (50/60Hz)
Alarm: Standard 2 relay outputs (expandable: /A1=2 points, /A2=4 points, /A3=6 points)
Accuracy: ±0.1% FS (voltage / current); ±0.7℃ (TC); ±0.3℃ (RTD)
