Yokogawa DD Motor DM1015B0[USED]
$700.00
Description
Description

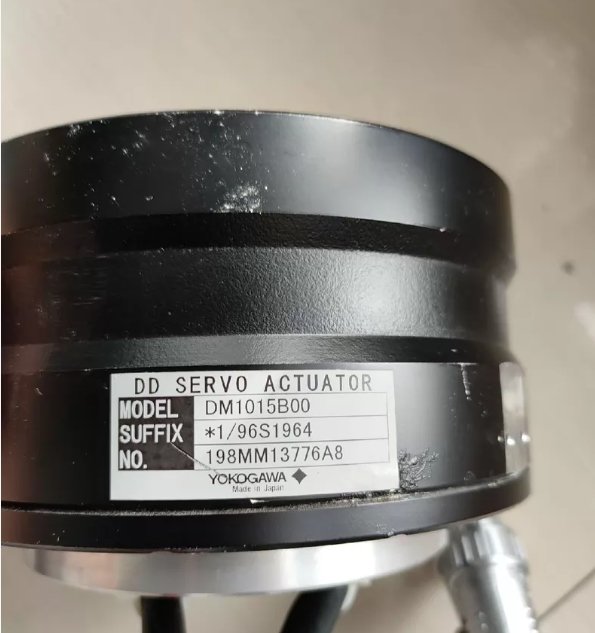

Yokogawa DM1015B0 is a high‑precision direct‑drive (DD) servo actuator from the DYNASERV DM series, designed for high‑torque, high‑accuracy positioning applications.
Core Specifications
表格
| Parameter | Value |
|---|---|
| Model Series | DM1B‑015 (DM1015B0) |
| Type | Outer‑rotor DD servo actuator |
| Rated Torque | 15 N·m |
| Max Speed | 100 r/min (≈10.5 rad/s) |
| Encoder Resolution | ≥ 500,000 ppr (high‑precision absolute/ incremental) |
| Motor Structure | Hollow‑shaft, flat profile |
| Weight | ~10.5 kg |
| Dimensions | Approx. φ250 × 92 mm |
| Matching Driver | SD1015B02‑2SN / UM1LG3 series |
| Power Supply | 200–230 VAC |
Key Features
- Zero backlash: Direct drive eliminates gearboxes, ensuring ultra‑high positioning accuracy.
- High rigidity: Compact, low‑inertia design for fast response and stable operation.

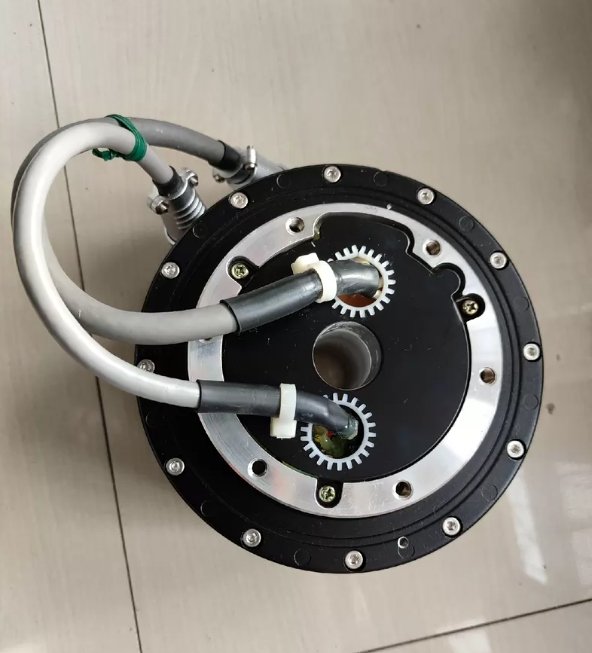

- Hollow shaft: Enables cable/airline routing through the center.
- High‑resolution encoder: Supports sub‑arc‑second positioning precision.
- Long service life: Maintenance‑free, no wearing parts.
Typical Applications
- Precision rotary tables
- Indexing mechanisms
- Industrial robots
- Semiconductor manufacturing equipment
- High‑accuracy assembly machines
