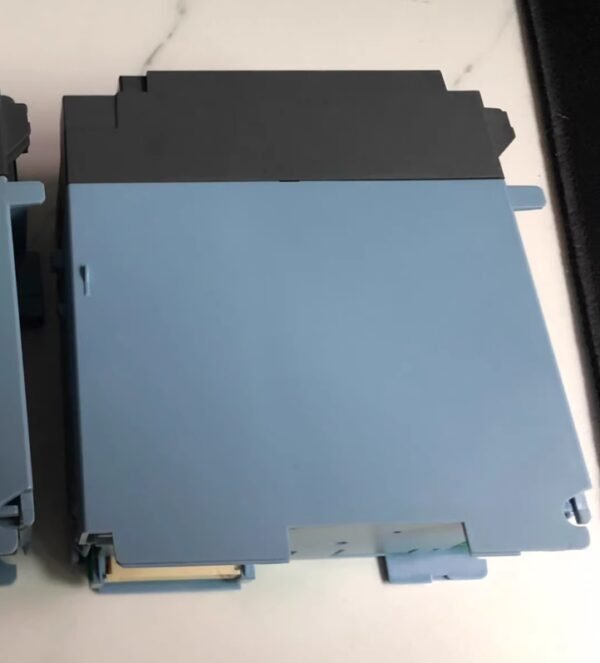

Hewa Data Collector GP10 is associated with GP20-GX10.GX20. The model is GX90XA-10-T1N-CC.[USED]

Description

I. Complete Model Analysis

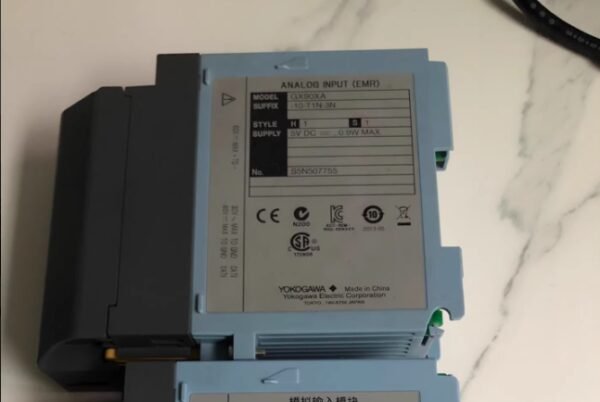

GX90XA: Analog Input Module
-10: 10 channels (10 universal isolated inputs)
-T1: Electromagnetic relay scan type, supporting DCV/TC/contact inputs
-N: Channel-to-channel insulation
-CC: Terminal block type / Special configuration (standard detachable terminals, compatible with GP/GX host)
II. Core Technical Parameters
1. Input Specifications
Channel count: 10 fully isolated universal inputs
Supported signals:
Thermocouple: K/E/J/T/S/R/B/N
Thermoresistor: Pt100, Cu50
DC voltage: 0–5V, 1–5V, 0–10V
DC current: 0–10mA, 4–20mA
Contact input (dry contact / semiconductor)
Sampling speed: Fastest 100ms (configurable)
Accuracy: ±0.05% reading + range suffix (voltage/current); ±0.7℃ (thermocouple); ±0.3℃ (RTD)
Insulation: Channel-to-channel / Channel – Ground 20MΩ @ 500V DC
2. Compatible Hosts
GP10: Portable, 5.7″ touchscreen, up to 3 modules (30 channels)
GP20: Portable, 12.1″ touchscreen, up to 10 modules (100 channels)
GX10: Panel embedded, 5.7″ touchscreen, up to 3 modules (30 channels)
GX20: Panel embedded, 12.1″ touchscreen, up to 10 modules (100 channels)
3. Physical and Installation

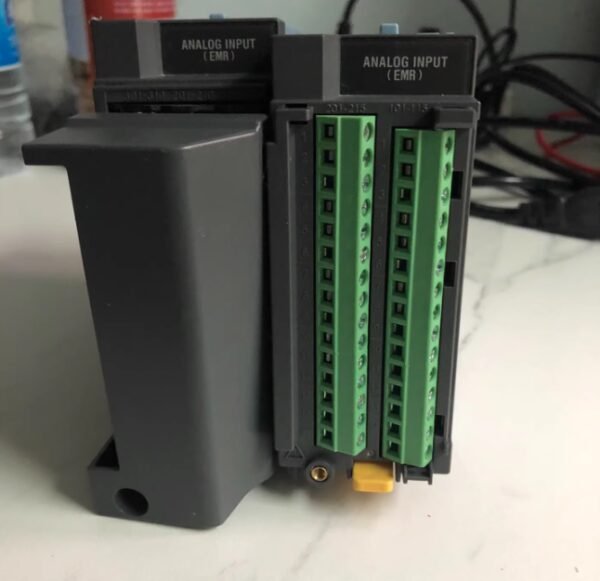

Terminal: Detachable M3 screw terminals
Installation: Direct insertion into the I/O slots of GP/GX host
Operating temperature: 0–50℃
Protection: Compatible with the front panel IP54 of the host
