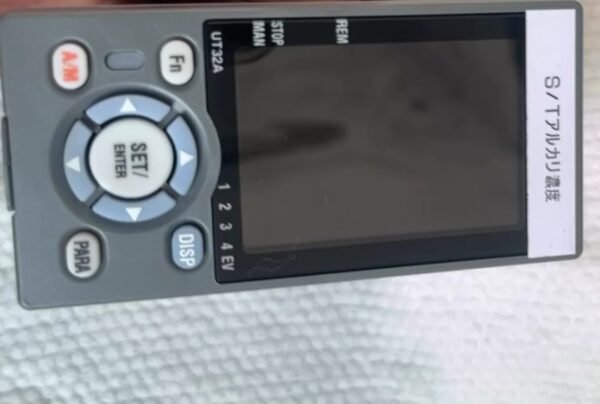

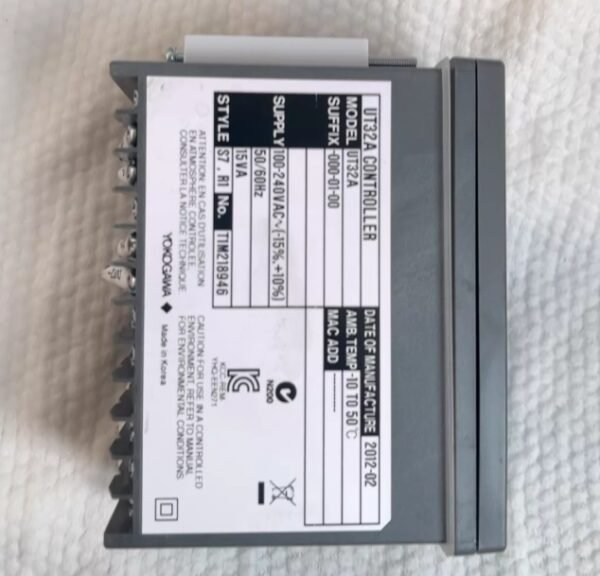

Yokogawa UT32A‑000‑01‑0 Digital Indicating Temperature Controller

Model Code Breakdown (UT32A‑000‑01‑0)

Core Specifications

Input

• Universal Input: 1 channel (TC, RTD, DC mV, V, mA: 4–20 mA, 0–20 mA, 0–10 V)
• Accuracy: ±0.1% FS (after calibration)
• Sampling/Control Period: 200 ms

Control & Algorithms

• Control Modes: PID, ON/OFF, heating/cooling, position proportional
• PID Sets: 4 independent PID groups (auto‑tune, anti‑windup)
• Ladder Logic: 500 steps (program via LL50A software)

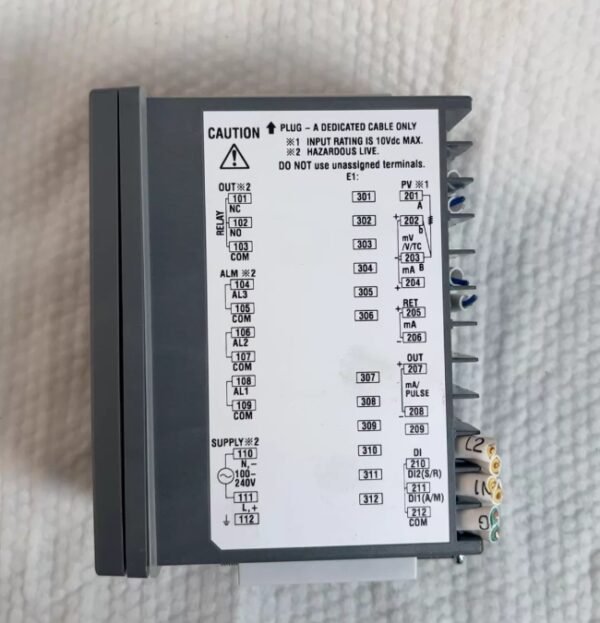

I/O Configuration

• Digital Inputs (DI): 2 channels (standard)
• Digital Outputs (DO): 3 channels (standard alarms)
• Main Output: Configurable (relay, voltage pulse, 4–20 mA current)
• Alarms: 3 independent common alarm terminals

Display & Physical

• Display: 14‑segment 5‑digit color LCD (red/white), bar graphweb-material3.yokogawa.com
• Panel Size: 48 × 96 mm (1/8 DIN), depth 65 mm
• Power: 100–240 V AC, 50/60 Hz; ~5 W
• Operating: ‑10 to +50 °C, ≤85% RH (non‑condensing)
• Front Protection: IP66 (NEMA4) dust‑proof/drip‑proofYokogawa
• Warranty: 3‑yearYokogawa

Communication

• Standard: No open network (RS‑485 not included in this model)
• Languages: English, Chinese, Japanese, German, French, Spanish, Korean

Key Features

• Compact 1/8 DIN: Ideal for space‑constrained panels
• Color LCD: Intuitive status monitoring (white = normal, red = alarm)Yokogawa
• Built‑in Ladder Logic: Eliminates external PLC for basic sequence control
• Standard I/O: 2 DI + 3 DO for basic interlock/sequence logic
• Multi‑language Support: Easy operation for global teams
