Description

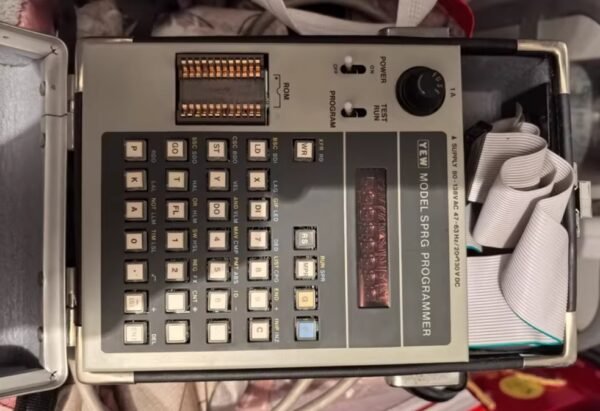

Yokogawa SPRG*E Programmer

Core Overview

• Full Model: SPRG*E (Style E)
• Type: Handheld Programmer / Parameter Setting Tool
• Platform: YS80 (YEWSERIES 80) Series (Style E)
• Status: Discontinued (Jan 1, 2008)
• Replacement: YSS1000 PC‑based setting softwareYokogawa
• Key Use: Program EPROMs, set parameters, monitor I/O, run diagnostics

Key Features

• 16‑digit LCD Display: Shows parameters, values, and status
• 41‑Key Keypad: Multi‑function keys for navigation and data entry
• Direct EPROM Programming: Writes user programs to SLPC/SCMS/SPCM EPROMs
• Online Monitoring: View PV, SP, output, alarms, and computed values
• Parameter Setting: Adjust setpoints, PID, ranges, alarms, and compensation coefficients
• Diagnostics: Display FAIL/ALM causes and self‑test results
• Simulation Mode: Test logic without field signals
• Power‑Fail Safe: Preserves settings during power loss

Technical Specifications

Display & Input

• Display: 16‑digit LCD
• Keypad: 41 keys (multi‑function)
• Interface: Dedicated port for YS80 Style E instruments

Power

• Supply: 9 V DC battery (internal)
• Battery Life: ~20 hours (typical)

Physical

• Dimensions: ~220 × 100 × 50 mm
• Weight: ~400 g
• Operating Temp: 0°C to +50°C

Compatibility

• SLPC: Programmable Indicating Controllers
• SPCM: Pulse Computing Units
• SCMS: Programmable Computing Stations
• SPLR: Programmable Computing Units
• Other YS80 Style E rack instruments

Replacement & Migration

• Discontinued: SPRG*E is no longer sold or supported
• Recommended Replacement: YSS1000 PC softwareYokogawa
  • Connects via RS‑232/RS‑485 to YS1000/YS1700 series
  • Converts old SPRG programs to new formats
  • Full parameter setup, monitoring, and tuning
