Yokogawa AF210 Flash Microcontroller Programmer

Core Overview

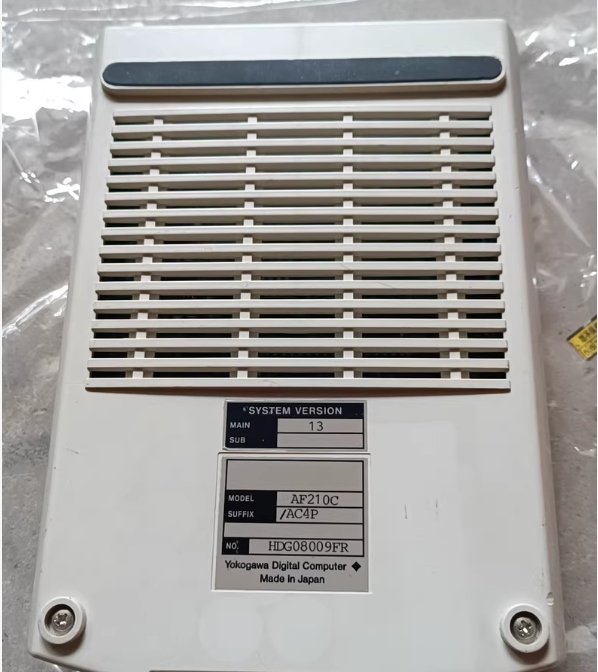

• Full Model: AF210/AC4P (standard model)
• Type: Desktop flash programmer (not handheld)
• Status: Discontinued; superseded by AF220/AF221
• Primary Use: In‑circuit programming (ICP) of Fujitsu/Cypress microcontrollers
• Key Compatibility: F²MC‑16LX (16‑bit), MB91F150/360 (32‑bit) families

Key Features

• Modular Design: Uses interchangeable PC‑card control modules for different MCU families
  • FF201: For F²MC‑16LX 16‑bit MCUs
  • FF205: For MB91F150 32‑bit MCUs
  • FF206: For MB91F360 32‑bit MCUs
• Operation Modes

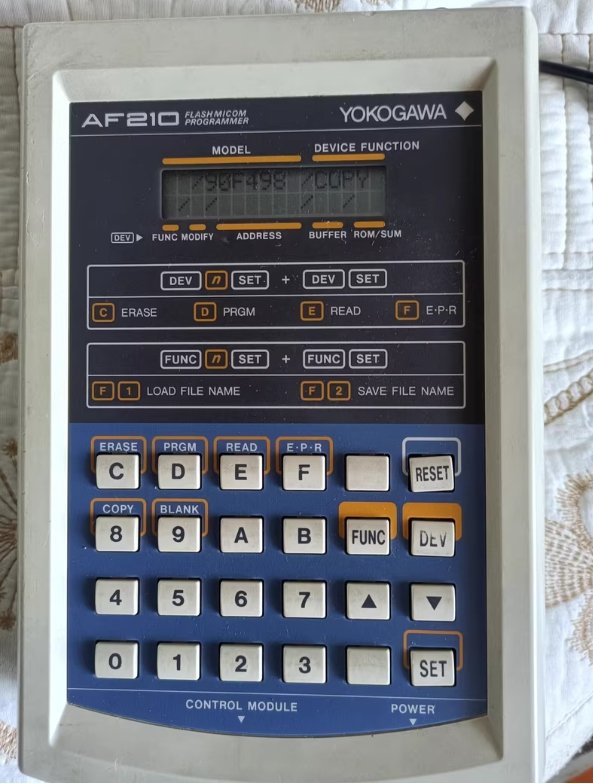

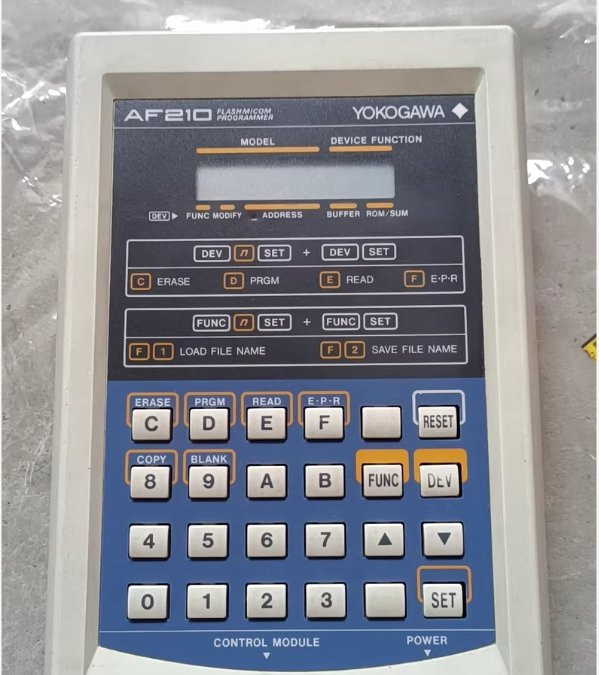

  • Standalone: Operate via front panel without PC

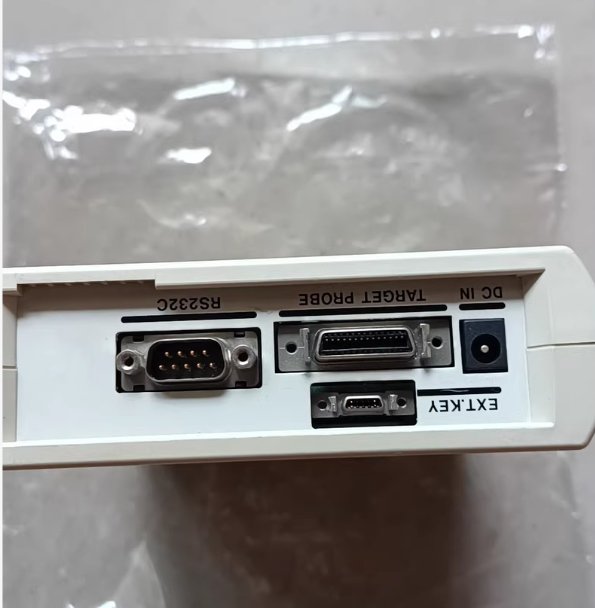

  • PC‑Controlled: Via RS‑232C interface
• Programming Functions: Erase, program, verify, blank check, read
• Remote Control: Optional AZ290 software for remote operation
• Data Storage: User settings saved on the control module

Technical Specifications

Standard Package

• AF210 main unit
• AC power adapter
• RS‑232C cable (AZ221: D‑SUB 9‑pin to 9‑pin)
• Target probe cable (AZ210/AZ211/AZ212)
• Control module (e.g., FF201)
• User manual
