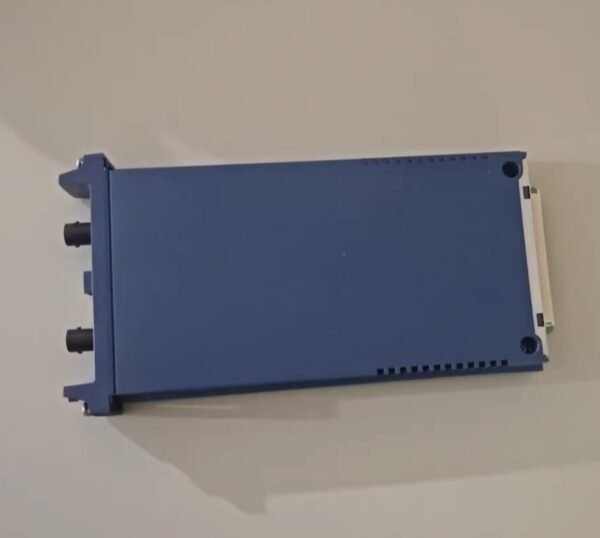

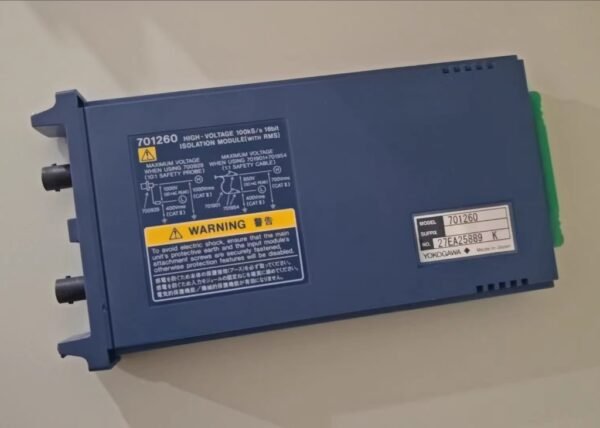

Yokogawa 701260 high-voltage insulation module, 100 ks/s 16-bit isolated module[USED]
$500.00
Description
Description
Yokogawa 701260 High-Voltage 100 kS/s, 16-bit Isolation Module (with RMS measurement), a discontinued plug-in input module for Yokogawa DL850/DL750 ScopeCorders, replaced by 701267 (and later 720268) after safety standard non-compliance in late 2013, with final discontinuation on Dec 31, 2013.
Core Specifications
表格
| Parameter | Details |
|---|---|
| Model | 701260 |
| Channels | 2 fully isolated unbalanced channels |
| Sampling Rate | 100 kS/s (max per channel) |
| A/D Resolution | 16 bits |
| Input Coupling | AC, DC, GND, AC‑RMS, DC‑RMS |
| Input Ranges (1:1 probe) | 20 mV/div to 200 V/div (1‑2‑5 steps); max input (DC+AC peak) 850 V |
| Input Ranges (10:1 probe) | 200 mV/div to 2000 V/div; max input (DC+AC peak) 8500 V |
| Frequency Response (‑3 dB) | Waveform mode: DC to 40 kHz; RMS mode: 40 Hz to 10 kHz |
| DC Accuracy | ±0.25% of full scale (after 30‑min warm‑up, calibrated) |
| Isolation | Channel‑to‑channel & channel‑to‑ground isolation for high‑noise industrial environments |
| DC Offset | ±5 div |
| Front Connector | BNC (compatible with safety probes 7019xx series) |
| Operating Temp | 0°C to +40°C |
Key Features
- Dual isolated high‑voltage input: prevents ground loops and ensures safety in power electronics testing (inverters, motor drives, switchgear).
- Built‑in RMS computation: real‑time AC/DC RMS readings without external math processing.
- 16‑bit precision at 100 kS/s: balances speed and resolution for medium‑speed high‑voltage transient capture.
- Anti‑aliasing filter matched to the 100 kS/s rate to avoid frequency aliasing.
- Hot‑swappable in compatible ScopeCorder chassis for minimal downtime during test setup changes.
Typical Applications
- High‑voltage power converter waveform analysis
- Industrial motor drive voltage monitoring
- Transformer and power supply transient testing
- Power quality (RMS voltage/current) logging
- High‑noise plant floor electrical measurements requiring galvanic isolation
