Description

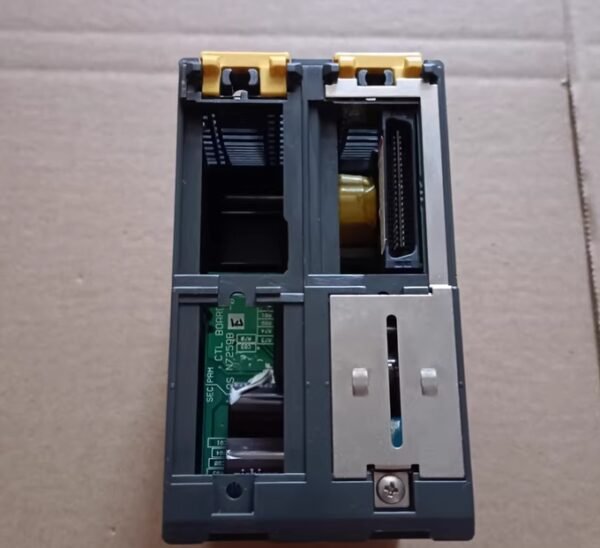

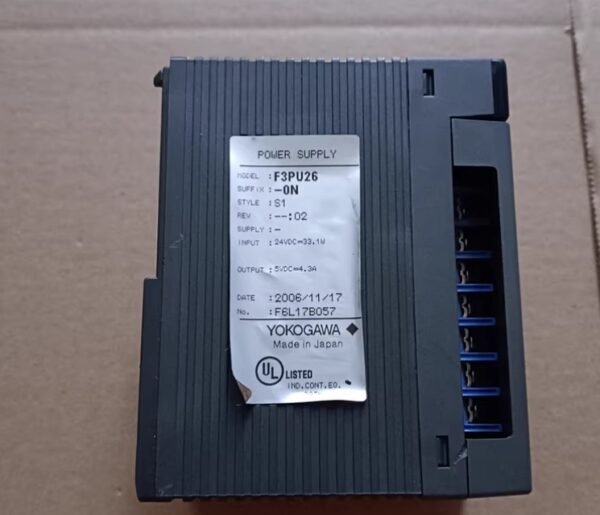

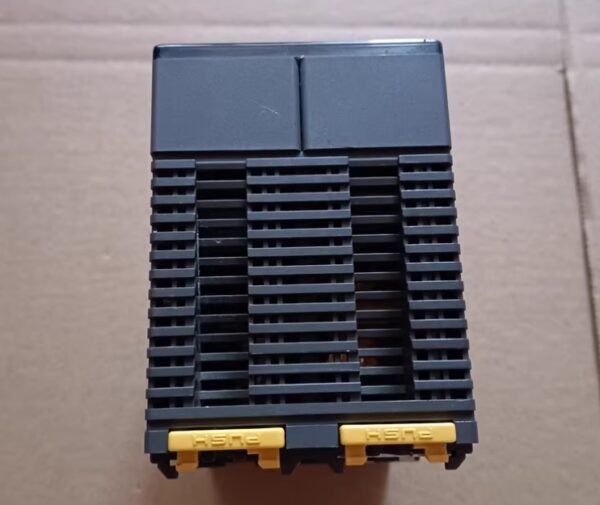

Yokogawa F3PU26‑0N PLC Power Supply Module

Core Specifications

Input

• Nominal input: 24 V DC
• Input range: 15.6–31.2 V DC
• Inrush current: ≤ 20 A (at 31.2 V DC, 25°C)
• Power consumption: 33.1 W

Output

• Output voltage: 5 V DC
• Rated output current: 4.3 A
• Protection: Built‑in time‑lag fuse (non‑replaceable)

Compatibility

• Compatible bases: F3BU05‑0D, F3BU09‑0N, F3BU13‑0N, F3BU16‑0N
• Slot type: Double‑slot module

Physical & Environmental

• Dimensions: 58 (W) × 100 (H) × 83.2 (D) mm
• Weight: 320 g
• Isolation: ≥ 5 MΩ (500 V DC) between input/output/FG
• Operating temp: −10°C to +55°C
• Humidity: 5–95% RH (non‑condensing)

Key Features

• Wide input voltage: Tolerates typical industrial 24V DC fluctuations.
• High output current: 4.3A supports dense I/O configurations.
• Built‑in protection: Overcurrent fuse safeguards the PLC system.
• DIN‑rail / panel mount: Integrates with standard FA‑M3 racks.

Model Code Meaning

• F3: FA‑M3 / e‑RT3 series
• PU: Power supply module
• 26: 24V DC input, 5V DC / 4.3A output
• 0N: Terminal block type (M3 screws)
