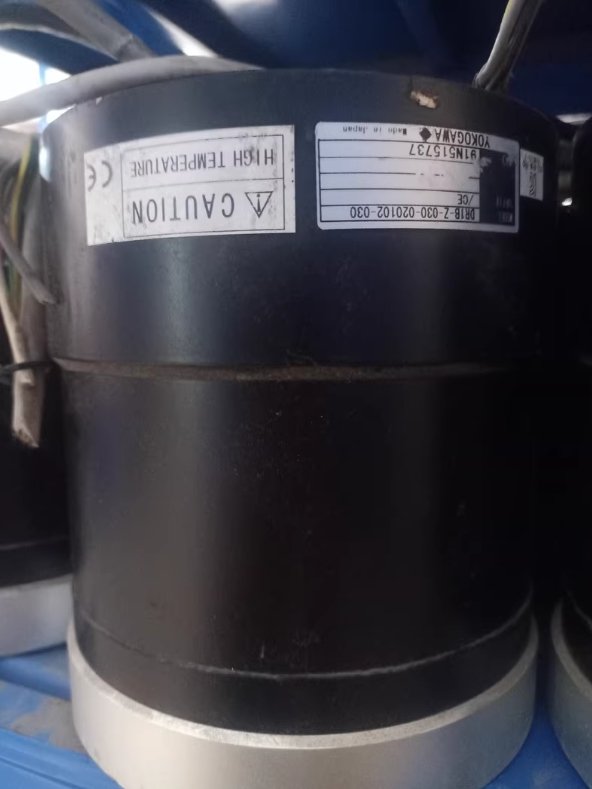

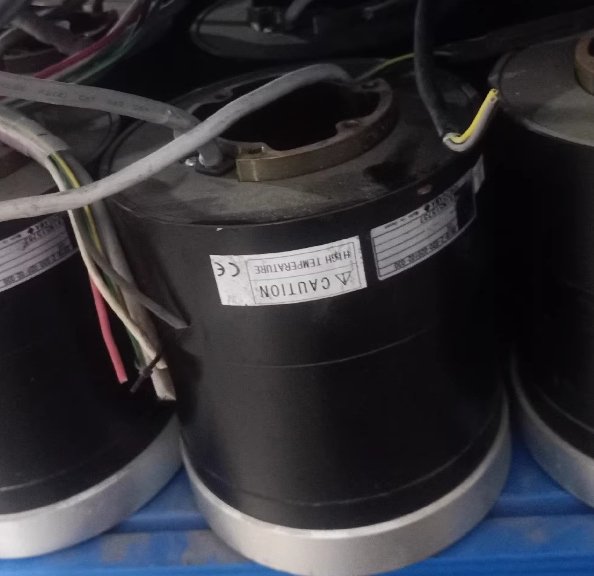

YOKOGAWA servo DD motor DR1B-030-020102-030/CE[used]

Description

Project Specifications
Continuous Torque Approximately 30 N·m
Peak Torque Approximately 90 N·m (3 times instantaneous, lasting for seconds)
Rated Speed 30–50 r/min (low speed with high torque, without gearbox)
Maximum Speed 100–150 r/min (subject to drive unit limitations)
Feedback High-resolution photoelectric encoder / rotary transformer (commonly 500,000 ppr or higher)
Positioning Accuracy Repeatable positioning ±2–±5 arc seconds (depending on configuration)
Structure Extruded rotor, hollow shaft optional, turntable mounting flange
Compatible Drives DYNASERV DR1 series drives (such as SR1015B85, requires matching power and interface)
