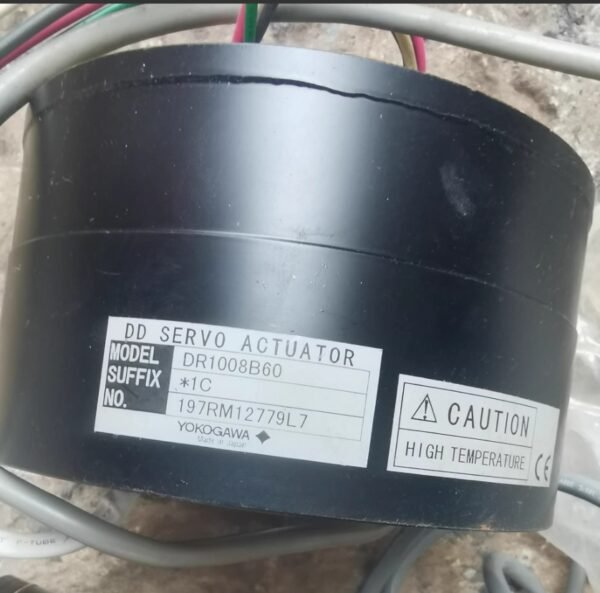

Yokogawa DR1008B60[used]

Description

Core Specifications and Performance
Motor and Torque: Peak torque approximately 8 N·m (6 ft-lbs); rated speed 2.0 rps (120 rpm, 115/230 VAC universal); gearless design, eliminating backlash, with extremely strong low-speed stability; rotary transformer feedback, resolution up to 507,904 steps/rev, repeatability accuracy ±5 arc-sec
Power Supply and Power Consumption: Supports 115 VAC or 230 VAC single-phase input; maximum power consumption 0.7 kVA; the driver has overcurrent, overvoltage, overheat, and short-circuit protection
Control Modes: Can operate in three closed-loop modes: position (pulse/direction), speed (±10 V analog), and torque (±8.5 V analog); built-in I-PD digital control algorithm, panel LED provides diagnosis and status display
Mechanical Load Capacity: Cross roller bearings can withstand large axial loads; DR1008B has no mechanical brake (this model is standard without provision)
Interfaces and Communication: Standard motor – driver cable (10 ft); provides sequence control signal interface, origin sensor interface; compatible with various controllers / indexers of Compumotor
