F3LC11-2F, YOKOGAWA PLC module[USED]

Name: F3LC11-2F, YOKOGAWA PLC module[USED]
Brand: Yokogawa
SKU: 23729
Price: 180.00 USD
Availability: InStock

$180.00

Categories:

SHOP, USED

Brand: Yokogawa

F3LC11-2F, YOKOGAWA PLC module[USED]

$180.00

Add to Cart

Complete Collection of New + USED Industrial Products — Automation & Instrumentation | From Field to Factory Floor
Our Services: ✅ Free Global Shipping ✅ 30-Day Returns & Exchanges ✅ Physical Product Photography ✅ Most Favorable Prices
Who We Stock: Our inventory spans the full spectrum of automation infrastructure — from field instrumentation to high-level control systems — sourced from the industry’s leading manufacturers:
🛠️ Process & Discrete Automation: Emerson · Honeywell · Siemens · GE · ABB · Schneider Electric · Rockwell Automation · Mitsubishi Electric · Yokogawa Electric · Fuji Electric
🤖 Robotics & Motion Control: FANUC · Yaskawa (Motoman) · Omron · Keyence · Beckhoff · Lenze · Nidec
⚙️ Fluid Control & Pneumatics: Parker Hannifin · Eaton · Festo · SMC
🔌 Connectivity & Sensing: TE Connectivity · SICK · ifm electronic · TURCK · Pilz
🏭 Industrial Infrastructure & Power: Rittal · Danaher · and more
Product Scope: Field instrumentation → Control systems → Drives & motion → Pneumatics & fluid control → Sensors & connectivity → Power & enclosure infrastructure
📞 Contact Us — WhatsApp: +86 15502977793 · For inquiries, pricing, or availability, reach out anytime.

Description

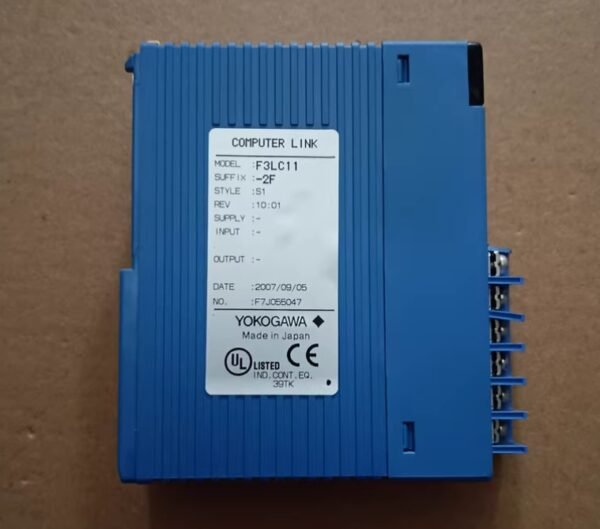

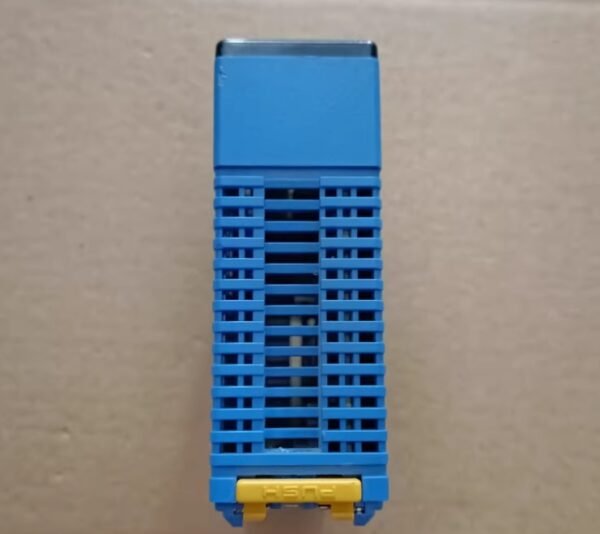

Yokogawa F3LC11-2F PLC Module

F3LC11-2F is Yokogawa’s RS‑422/RS‑485 PC Link communication module for the FA‑M3 PLC series, enabling high‑speed, multi‑drop communication between the PLC and host computers/HMIs.

Core Overview

Full Model: F3LC11‑2F
Type: PC Link Communication Module (RS‑422/RS‑485)
Platform: Yokogawa FA‑M3 PLC
Port: 1 × isolated RS‑422‑A/RS‑485 port
Status: Legacy (discontinued; still widely used in existing systems)

Key Features

No Ladder Programming Required: Direct device read/write via proprietary protocol
Online Access: Read/write PLC devices even when the ladder program is stoppedweb-material3.yokogawa.com
Multi‑Drop Support: Up to 32 modules on one RS‑485 bus
Built‑in Terminator: 220 Ω terminator (switch‑selectable for 2‑wire/4‑wire)web-material3.yokogawa.com
Isolation: Full electrical isolation between port and PLC backplane
Remote Control: Remote program run/stop, upload/download, and error log accessweb-material3.yokogawa.com
Direct HMI Connection: Works with FA‑M3‑compatible operator interfaces

Technical Specifications

Communication

表格

Item	Details
Standard	EIA RS‑422‑A / RS‑485
Transmission Mode	Half‑duplex; 2‑wire or 4‑wire
Baud Rates	300, 600, 1200, 2400, 4800, 9600, 19200, 31250, 38400, 115200 bps
Max Distance	1200 m (RS‑485)
Data Format	7/8‑bit data; 1/2 stop bits; none/even/odd parity
Error Detection	Parity check + checksum
Protocol	Yokogawa proprietary PC Link protocol

Electrical & Physical

表格

Item	Details
Power	5 V DC from FA‑M3 backplane
Current Consumption	350 mA
Connector	D‑SUB 9‑pin female
Dimensions	28.9 (W) × 100 (H) × 83.2 (D) mm
Weight	120 g
Operating Temp	0 °C to +55 °C

Wiring & Setup

Cable: Shielded twisted‑pair (AWG 16–20); recommended: KM80‑xxx / KM81‑xxxweb-material3.yokogawa.com

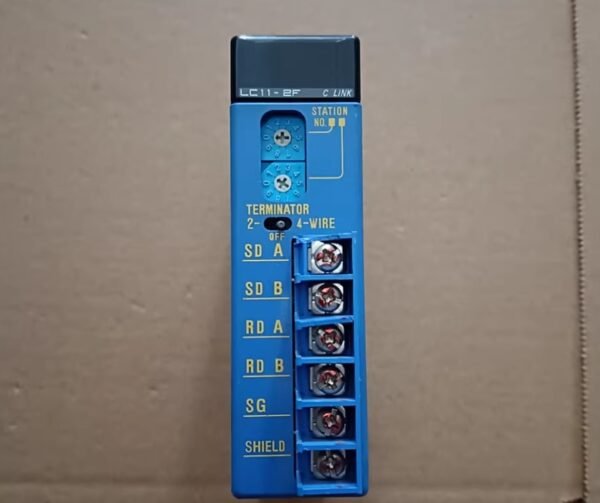

Terminator: Set switch to ON if module is at the bus end (220 Ω)web-material3.yokogawa.com
Isolation: SHIELD terminal internally connected to PLC FGweb-material3.yokogawa.com

Complementary Modules

F3LC11‑1F: RS‑232‑C version (for point‑to‑point)
F3LC51‑2N: UT Link module (for connecting to Yokogawa temperature controllers)
